AiM MXK10

Everything Right Under Control

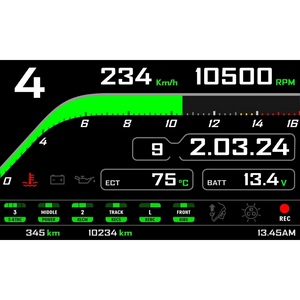

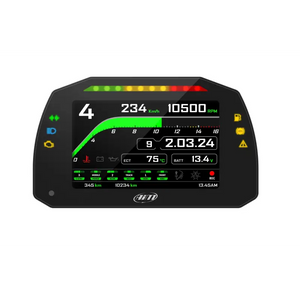

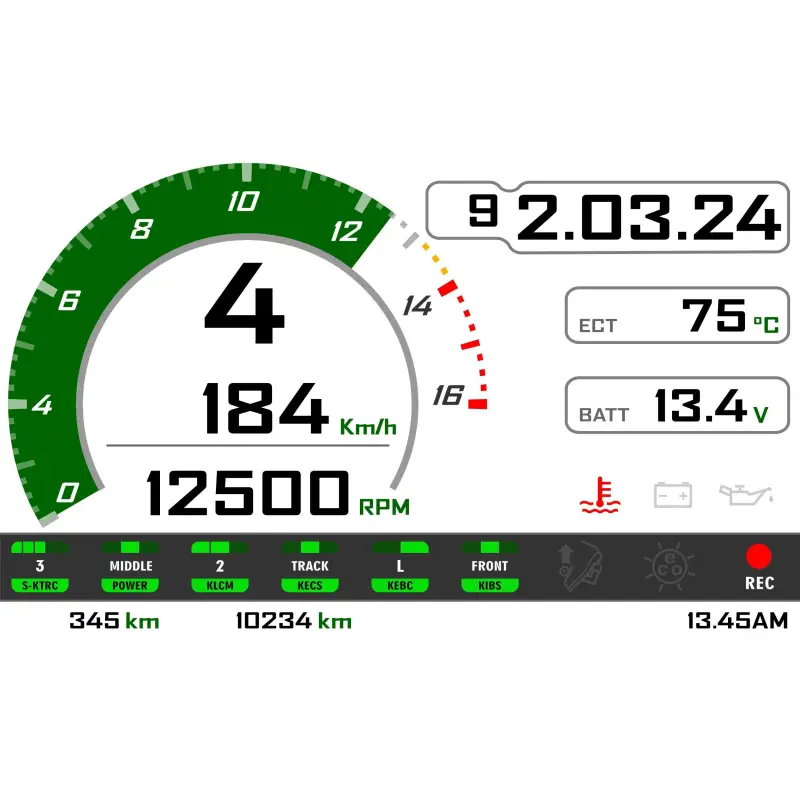

5' Colour TFT Display 6 Status information LEDs 10 Shift lights

Get the Best out of MXK10

Main connection Power and interaction with the bike USB connection For data download EXP connection For to expand your MXK10 Internal memory 4 GB For recording your data

A Wide, Complete and User-friendly Menu

Find the perfect set-up that fits either your riding-style or the road/track conditions. The complete menu allows you to easily modify every parameter of your bike: suspension setting, ECU maps, traction control, anti-wheeling, ABS, and so on.

Lap Timing and Data Logging for the Track

In case you ride your bike on a track, you may automatically get your lap times, thanks to the GPS Module and to a huge tracks database, installed in the MXK10. Not only. MXK10 records all the data coming from your ECU, as well as from the GPS Module: you can download them after each session, in order to analyze them and improve your performance, with the same, powerful AiM Software that so many professional racing teams use in all the tracks of the world.

Go even Full Racing

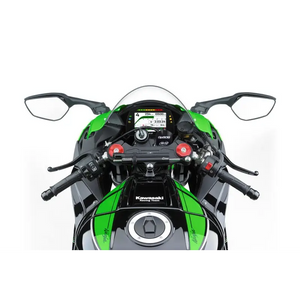

MXK10 is FULLY COMPATIBLE with Kawasaki Racing Kit.
It won’t need any additional wiring but the ones already included in the Racing Kit itself.
Plug it and play it.

Expansions

MXK10 may even manage a wide range of CAN expansion modules in order to let you acquire data also from suspensions potentiometers, brake pressure sensors, lambda values or tire temperature pyrometers, in order to gather even more specific data.

Lambda controller Wide band Lambda controller LCU-One, with Bosch LSU 4.9 probe, providing all Air/Fuel data and lambda values, allows to verify the behavior of your ECU.
Channel Expansion It permits to add four 0-5 Volt analog channels for pressure, temperature sensors and potentiometers.
SmartyCam HD cameras The on-board cameras that overlays on videos the data sampled by your logger. SmartyCam HDRev. 2.1 SmartyCam GP HD

Connection example

Wi-Fi connectivity and Analysis

Download all your data just wirelessly, for an even more practical usage in your track-day sessions or during your race week-ends. You won’t worry anymore about cables that you may have forgotten at home: using a secure 802.11 Wi-Fi connection, all your data will be stored straight on your PC, ready to be deeply analyzed via our free software Race Studio 3.
Via Race Studio 3, indeed, graphs, histograms, and tables will help you study your performance, providing an objective support to avoid mistakes and improve performances.
