AiM MX2E

MX2E

The brand new Plug & Play Dash Logger kit specifically designed for Lotus Elise/Exige

Model years 2004-2007 (version with airbag only)* 2008-2010 and 2011-2020 (only compatible with Toyota engines) *An adapter harness is required
 AiM MX2E

Full Plug & Play Dash Logger Kit

Featuring an ad-hoc engineered cluster in the kit, with four integrated buttons, MX2E is designed to be easily installed on Lotus Elise/Exige (models are shown above) and it’s fully Plug & Play. AiM MX2E AiM MX2E AiM MX2E
  • High contrast 6” TFT display 800x480 pixels
  • 18 integrated LEDS (10 shiftlights, 6 status information LEDs, 2 turn indicators)
  • 14 digital switch inputs
  • 4 integrated buttons in cluster
  • CAN bus ECU interface
  • Rear camera input
  • Wi-Fi connectivity

One dash, two souls

ROAD Two themes  TRACK
AiM MX2E ANALOG AiM MX2E
AiM MX2E DIGITAL AiM MX2E

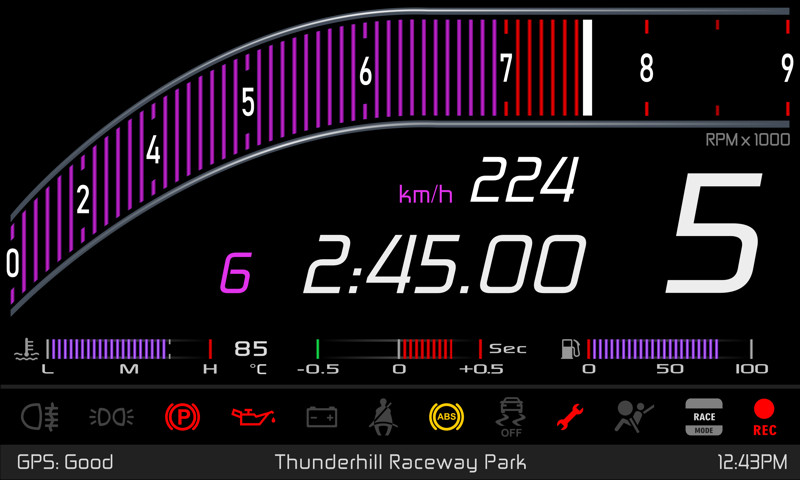

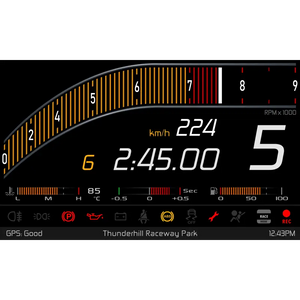

Four colors, 16 choices
AiM MX2E   AiM MX2E   AiM MX2E   AiM MX2E
AiM MX2E   AiM MX2E   AiM MX2E   AiM MX2E
AiM MX2E   AiM MX2E   AiM MX2E   AiM MX2E
AiM MX2E   AiM MX2E   AiM MX2E   AiM MX2E


Integrated Lap Time
Thanks to the integrated GPS and huge track database.



On the Track
...you will automatically have:
Lap Time and Predictive Lap Time AiM MX2E
... thanks to the huge database
of 4,000 tracks in the world		 AiM MX2E
... constantly updated by our technicians. AiM MX2E

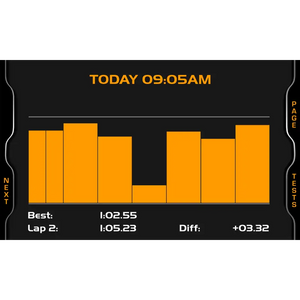

After the test
... you may look summarized data directly on your dash.


Or you can send
all recorded data to your PC
through Wi-Fi
for a professional analysis.



AiM MX2E

Not enough?
You may expand your MX2E capabilities connecting :

Lambda controller
Wide band Lambda controller LCU-One, with Bosch LSU 4.9 probe, providing all Air/Fuel data and lambda values, allows to verify the behavior of your ECU.		 LCU-One CAN
Channel Expansion
It permits to add four 0-5 Volt analog channels for pressure, temperature sensors and potentiometers.		 Channel Expansion

SmartyCam HD cameras
The on-board cameras that overlays on videos the data sampled by your logger.

SmartyCam HDRev. 2.1

SmartyCam GP HD

 SmartyCam HD Rev.2


Connection example

AiM MX2E

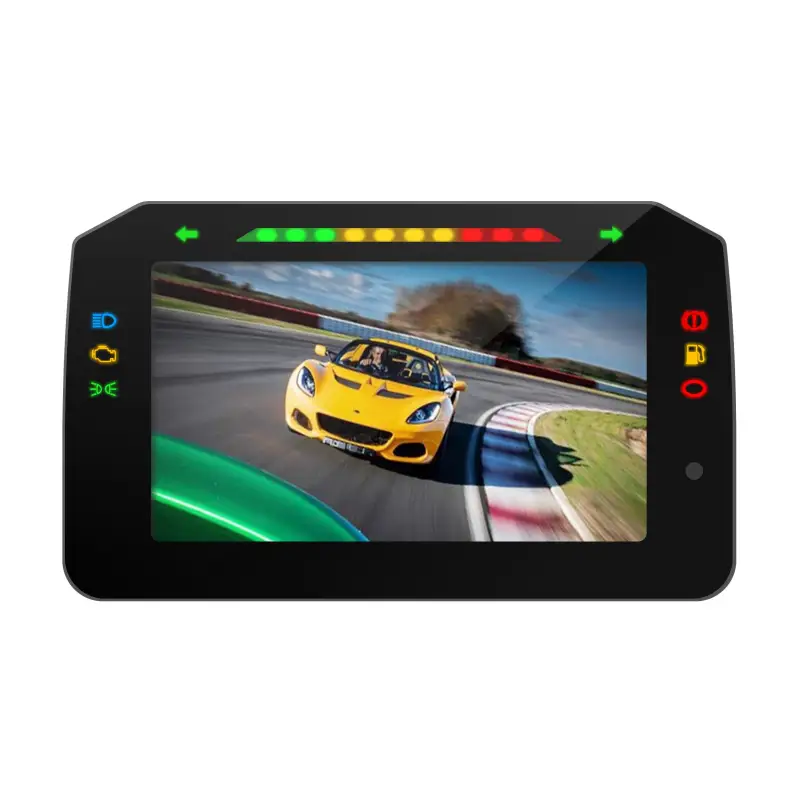

Optional inputs for rear camera

Two analog camera inputs are available, to swap your display into a mirror camera, through push-button command or event management.

  • Optical Format 1/4 inch Color CMOS
  • TV system NTSC
  • Pixel Array 648x488
  • Image area 3.63mm - 2.73mm
  • Frame rate NTSC: 60 filed/sec
  • Temperature -30°/+80°
AiM MX2E AiM MX2E



AIM MX2E Website Link:

 Display 6” TFT
 Resolution 800x480 pixels
 Contrast 600:1
 Brightness 700cd/m2 - 1,100 Lumen
 Ambient light sensor Yes
 Integrated buttons in cluster 4
 Status information LEDs 6
 Shift lights LEDs 10
 Turn indicators 2
 CAN connections 2
 ECU connections Yes
 External modules GPS Module, Channel Expansion, Lambda Controller, SmartyCam HD
 Wi-Fi connection Yes
 Internal memory 4 GB
 Body Anodized Aluminum
 Connectors 1 Delphi 12040722 connector + 4 Binder 712 connectors
 Power consumption 400 mA
 Dimensions 191 x 114,2 x 26,4 mm
 Weight 400 g
 Waterproof IP65



AiM MX2E

AiM MX2E

ADAPTER HARNESS
for Lotus Elise/Exige model years 2004-2007 (version with airbag only)

Product number: V02593010

Data sheet

 AiM MX2E

AiM MX2E

 IN THE BOX
AiM MX2EMX2E dash logger with cluster, dedicated GPS Module, screws and washers.

Product number: XA6MXPLEE0
