Data Logger

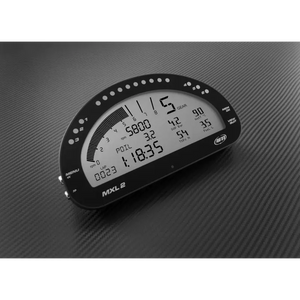

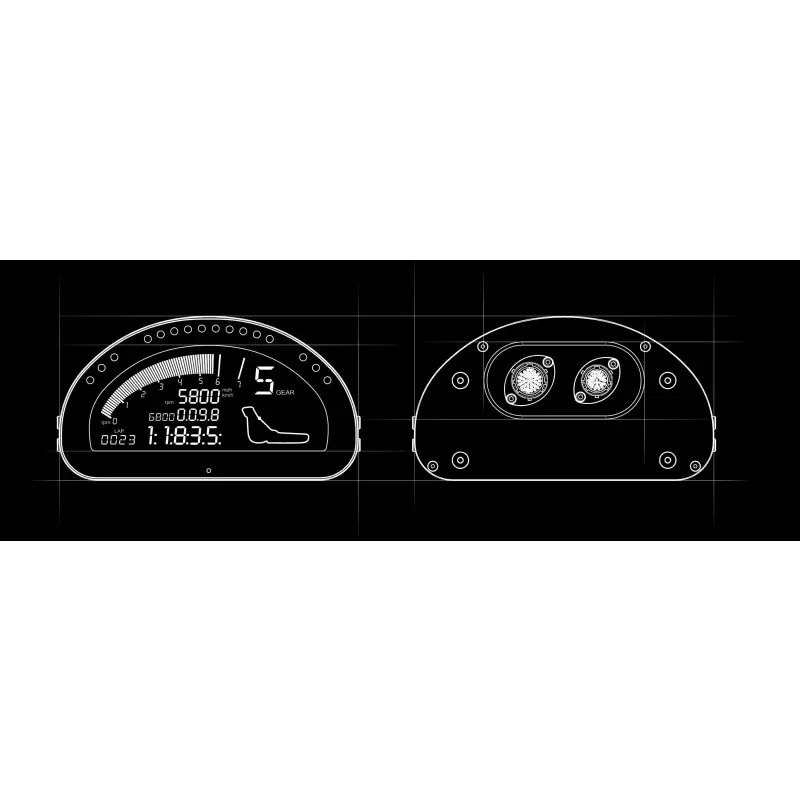

AiM MXL2

$ 2,299.00

Description
Technical Specification
Accessories / Spare parts
Downloads

MXL2 is the new AiM dashlogger providing all the info needed by professional racers as well as by newbies.
The product has been designed with the aim to make configuration and usage smooth and easy either for amateurs and for people with sophisticated technical background.

A wide range of data sources

MXL2 acquires and displays data coming from your ECU, the internal accelerometer and gyro, as well as from the GPS08 Module included in the kit, analog/digital inputs and predefined math channels.
Performance and data acquired can also be incremented adding up to eight expansion modules.


ECU connection	Analog/digital inputs	Internal accelerometer and gyro	Math channels	Second CAN	GPS08 Module

CAN output

With the CAN Output you can send messages directly to an existing CAN network in order to improve the range of vehicle control possibilities.

Custom pages

You can define up to eight different
custom pages, choosing among
a wide library of page styles, defining
which data to be shown,
their end of scale and measure units.
Here, examples of pages
with 1, 2, 3 or 4 different data.

AiM MXL2

Sharp liquid crystal

The MXL2 display features a high contrast
traditional LCD, with a black to white ratio
nearly double its predecessor, fused with
a graphical LCD offering great flexibility
in information display and alerts.
The MXL2 now offers a dual colored backlight
of high contrast white and red which can
also be changed conditionally.
An ambient light sensor keeps
the backlight at optimum brightness levels.

AiM MXL2

Flexible alarms

Six different alarm LEDs: you choose the conditions, the colors and the flashing frequency.
You can configure them in order to turn them on/off depending on analog or digital inputs,
ECU values, expansion values, GPS information or math channels.
You can also associate an alarm LED a message and a digital output with each event.

Two digital outputs

MXL2 features two digital outputs.
The two digital outputs (Dout) are LOW SIDE type
(switch to ground): they can be configured in order
to be turned on/off depending on the value
of the analog or digital inputs.
They permit to automatically run external systems,
i.e. to switch on/off additional lights,
to activate/de-activate a cooling fan
or circulation pumps, etc. when
a certain event happens.

More info

Integrated shift light array

An integrated shift light is a hallmark of the MXL, but an even better
10 LED shift light array is found in the MXL2.
Choose from a host of advanced
multicolored RGB shift light patterns
that can be customized as you like,
and for each unique gear when required.

Expand the system, according to your needs Using the built-in CAN bus, you can add expansion modules to the MXS to increment the performance and the data acquired:
GPS08 Module Thanks to GPS08 Module (included in the kit) and its Race Studio 3 software, you can immediately get laptimes and all data needed for engine tuning as well as for improving driving technique.
Channel Expansion It permits to add 4 0-5Volt analog channels for pressure, temperature sensors and potentiometers. Two of these channels can be configured to receive digital inputs like wheel speed.
TC Hub It adds 4 K thermocouples.
LCU-One CAN Wide band Lambda controller LCU-One, with Bosch LSU 4.9 probe, providing all Air/Fuel data and lambda value, allows to perfectly tune the carburetion.
SmartyCam HD cameras The on-board cameras that overlays on videos the data sampled by your logger. SMARTYCAM HD Rev. 2.1 SMARTYCAM GP HD Rev. 2.2
Memory Module The Memory Module is a small SD Card holder that can be connected via CAN bus to your AiM logger in order to record the data during your tests.

Expand the system, according to your needs

Using the built-in CAN bus, you can add expansion modules to the MXS to increment the performance and the data acquired:

GPS08 Module

Thanks to GPS08 Module (included in the kit) and its Race Studio 3 software, you can immediately get laptimes and all data needed for engine tuning as well as for improving driving technique.

Channel Expansion

It permits to add 4 0-5Volt analog channels for pressure, temperature sensors and potentiometers. Two of these channels can be configured to receive digital inputs like wheel speed.

TC Hub

It adds 4 K thermocouples.

LCU-One CAN

Wide band Lambda controller LCU-One, with Bosch LSU 4.9 probe, providing all Air/Fuel data and lambda value, allows to perfectly tune the carburetion.

SmartyCam HD cameras

The on-board cameras that overlays on videos the data sampled by your logger.

SMARTYCAM HD Rev. 2.1

SMARTYCAM GP HD Rev. 2.2

Memory Module

The Memory Module is a small SD Card holder that can be connected via CAN bus to your AiM logger in order to record the data during your tests.

Race Studio 3, the almighty software

Race Studio 3 is the heart of your MXL2, managing all your activities related to:
Configuration
With Race Studio 3 you can create, modify, delete, import and export configurations with all channels, ECU drivers, Math channels, Display Pages, Digital outputs, Alarms, Shift Lights and all the expansions you need. You will also be able to manage the map of all your racing tracks and compare two laps watching the video recorded by SmartyCam HD cameras.

Analysis

With Race Studio 3 you can also analyse all data recorded by MXL2 and downloaded to your PC: graphs, histograms and tables will help you study your performance, providing an objective support to avoid mistakes and improve performances.

DOWNLOAD RS3

Wi-Fi connectivity

Makes it even more convenient
to configure, calibrate, and download your data
wirelessly, using a secure 802.11 WiFi
connection: no need to move your PC close
to the vehicle anymore, you can do it
from your van up to 50 meters away.

AiM MXL2 Website Product Description.

MXL2
Display	LCD display + graphical portion
Backlight	White or red
Ambient light sensor	Yes
Alarm LEDs	6 RGB freely configurable
Shift lights	10 integrated freely configurable RGB LEDs
CAN connections	3
ECU connections	CAN, RS232 or K-Line
ECU compatibility	+ 700 industry leading ECUs
Expansion CAN connection	GPS, Channel Expansion, Thermocouple Expansions, Lambda Controller, SmartyCam
Analog inputs	8 fully configurable, max 1,000 Hz each
Digital inputs	4 Speed inputs, lap signal, coil RPM input
Digital outputs	2 (1 Amp max each)
Accelerometer	Internal Three-axial ± 5G + Three-axial Gyroscope
Internal memory	4 GB
Body	Anodized Aluminum
Pushbuttons	Metallic
Connectors	2 Motorsport connectors
Dimensions	187.8x103x21 mm
Weight	530 g
Power consumption	400 mA
Waterproof	IP65

ACCESSORIES

22 pins harness Part Number: V02573020 Download the tech sheet
22 pins harness with 1 thermocouple Part number: V02573080 Download the tech sheet
22 pins harness with 2 thermocouples Part number: V02573160 Download the tech sheet
37 pins harness with 1 thermocouple Part number: V02573040 Download the tech sheet
37 pins harness with 2 thermocouples Part number: V02573050 Download the tech sheet
Remote buttons interface
22 pins female Deutsch connector Part number: 5CN822F00
37 pins female Deutsch connector Part number: 5CN837F00

SPARE PARTS

37 pins harness Part number: V02573010 Download the tech sheet
GPS08 Module
USB adapter Part number: V02573030 Download the tech sheet
USB cable Part number: X90TMPC002
AiM USB bulkhead adapter Part number: V02573200

AiM MXL2 Datasheet

Technical sheet
Product history
Digital outputs
