Data Logger

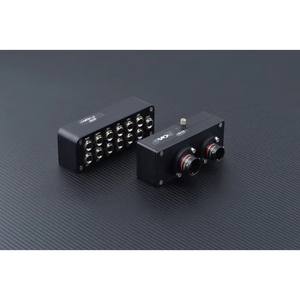

AiM EVO5

$ 1,899.00

Description
Technical Specifications
Accessories / Spare Parts
Downloads

EVO5 is the evolution of the traditional datalogger that, all over the years, has become a standard de facto acquisition system in a huge amount of championships. With its compact aluminum body, EVO5 can be easily placed in any vehicle.

Its configuration with the new Race Studio 3 software is simple and immediate.

A wide range of sources for your data

VO5 samples all the information you need: data coming from your vehicle ECU via CAN, RS232 or K-line, from the internal accelerometers and gyro, from the GPS08 Module included in the kit.
And from analog/digital inputs, external expansions as well as predefined math channels. Sensors can be connected to 8 configurable analog channels, to the RPM input and to 4 wheel speed inputs.


ECU connection	Second CAN	Sensors	GPS08 Module

Two digital outputs

EVO5 features two digital outputs.
The two digital outputs (Dout) are LOW SIDE type (switch to ground): they can be configured in order to be turned on/off depending on the value of the analog or digital inputs.
They permit to automatically run external systems, i.e. to switch on/off additional lights, to activate/de-activate a cooling fan or circulation pumps, etc. when a certain event happens.

More info

CAN output

With the CAN Output you can send messages directly to an existing CAN network in order to improve the range of vehicle control possibilities.

Wi-Fi connection

Configure the system and download your data over a secure 802.11 WiFi connection, even if your car is 100 meters far from you.

Internal SD card

The internal SD card (not included in the box) permits to record all possible data you may ever need. The card is protected by a waterproof door equipped with a sensor closing all files when you open it, to prevent any data loss possibility. No way to have a faster data downloading: you remove the SD and... it is done! Of course a USB connection is available, too.

Two multi-channel Motorsport connectors

Two multi-channel Motorsport connectors: simple and straightforward, one top quality harness for ALL your connections.
A 37 pins connector for main applications (power, CAN, AiM CAN network, etc.) and a 22 pins connector for additional functions like CAN2, digital outputs... AiM EVO5

LCU-One CAN

Wide band Lambda controller LCU-One, with Bosch LSU 4.9 probe, providing all Air/Fuel data and lambda value, allows to perfectly tune the carburetion.

Expand your EVO5 as much as you need Add expansion modules via our built-in CAN bus:
Channel Expansion It permits to add 4 0-5Volt analog channels for pressure, temperature sensors and potentiometers. Two of these channels can be configured to receive digital inputs like wheel speed.
LCU-One CAN Wide band Lambda controller LCU-One, with Bosch LSU 4.9 probe, providing all Air/Fuel data and lambda value, allows to perfectly tune the carburetion.
SmartyCam HD cameras The on-board cameras that overlays on videos the data sampled by your logger. SMARTYCAM HD Rev. 2.1 SMARTYCAM GP HD Rev. 2.2
Memory Module The Memory Module is a small SD Card holder that can be connected via CAN bus to your AiM logger in order to record the data during your tests.

Expand your EVO5 as much as you need

Add expansion modules via our built-in CAN bus:

Channel Expansion

It permits to add 4 0-5Volt analog channels for pressure, temperature sensors and potentiometers. Two of these channels can be configured to receive digital inputs like wheel speed.

LCU-One CAN

Wide band Lambda controller LCU-One, with Bosch LSU 4.9 probe, providing all Air/Fuel data and lambda value, allows to perfectly tune the carburetion.

SmartyCam HD cameras

The on-board cameras that overlays on videos the data sampled by your logger.

SMARTYCAM HD Rev. 2.1

SMARTYCAM GP HD Rev. 2.2

Memory Module

The Memory Module is a small SD Card holder that can be connected via CAN bus to your AiM logger in order to record the data during your tests.

... and all sensors you may need to improve the EVO5 performance.

AiM EVO5

Available displays

To visualize in real time all the data, EVO5 can be connected to the visor GS-Dash or to the Formula Steering Wheel 3, our professional steering wheel for Formula and Sports cars.

Download your data to a PC for a professional data analysis

Data recorded by EVO5 can be downloaded to PC and analyzed with the professional Race Studio Analysis software: graphs, histograms and tables will help you evaluate your performance, providing an objective support to avoid mistakes and improve your driving technique.

DOWNLOAD RS3

AiM EVO5 Website Product Description.

AiM EVO5

Technical Specifications

ECU connection	CAN, RS232, K-Line
External modules connection	GPS Module, Channel Expansion, TC Hub, Lambda controller, SmartyCam HD
Analog inputs	8 fully configurable: 0-5V, 0-12V, K thermocouples. Max freq 1 KHz each
Digital inputs	Coil RPM and 4 speed inputs
Inertial platform	Internal 3 axis ±5G accelerometer + 3 axis gyro
Digital outputs	2, up to 1 A each
Second CAN	Yes
Wi-Fi connection	Yes
Internal memory	4 GB
SD card	Internal: up to 128 GB (not included)
Connectors	2 Motorsport
Body	Anodized aluminum
LEDs	1 system status
Dimensions	114.4x47.2x58.8 mm
Weight	300 g
Waterproof	IP65

In the box

EVO5, harness, GPS08 Module and software.

Installation

For a correct EVO5 installation it is important to follow some simple rules.
Carry out CAN, serial or K-line connection only AFTER performing the logger configuration with Race Studio 3.
For a correct working of the integrated three-axial accelerometer and gyroscope, EVO5 is to be placed in a central position of the car (ideally in the vehicle's centre of gravity).
GPS module is not to be positioned under metal or carbon fibre objects, which would greatly reduce the satellite signal quality.
Also avoid the positioning close to other antennas, digital cameras or TFT displays.
Finally, avoid to install the product with tense cables.

ACCESSORIES

22 pins female Deutsch connector

Part number: 5CN822F00

37 pins female Deutsch connector

Part number: 5CN837F00

22 pins harness

Part Number: V02586030

SPARE PARTS

37 pins harness Part Number:V02586020 Download the tech sheet
GPS08 Module
USB cable Part number: X90TMPC002
AiM USB bulkhead adapter Part number: V02573200

AIM EVO5 User guide
AIM EVO5 Technical sheet
